120 Degree High Light Efficiency White 60mA SMD 2835 LED CHIP

Name: 120 Degree High Light Efficiency White 60mA SMD 2835 LED CHIP
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: LED SMD 2835 ad alta efficienza luminosa
Price: 12.20 USD
Availability: InStock

Dettagli del prodotto

Luogo di origine: Cina

Marca: HuanYu Dream

Certificazione: Rohs

Numero di modello: LED SMD 2835 ad alta efficienza luminosa

Termini di pagamento e di spedizione

Quantità di ordine minimo: 4000 pezzi

Prezzo: Negoziabile

Imballaggi particolari: 4000pcs/bobina

Tempi di consegna: 7-9 giorni di lavoro

Termini di pagamento: T/T, Paypal, Ali Pay

Capacità di alimentazione: 500kpcs/giorno

Ottieni il miglior prezzo

Dettagli del prodotto

Descrizione del prodotto

Evidenziare:
                                                                                                                                                                                                                                                                                                                120 degree high light efficiency LED chip, 60mA SMD 2835 LED chip, white 2835 LED chip with warranty


Pacchetto:	HY-2835W60-3V2S	Energia:	1W
Voltaggio:	2.7-2.9V	Attuale:	300 mA
Efficienza luminosa:	228LM/W@60mA	Colore:	Bianco
Angolo di visualizzazione (°):	120°	Garanzia:	3-years

Pacchetto:	HY-2835W60-3V2S
Energia:	1W
Voltaggio:	2.7-2.9V
Attuale:	300 mA
Efficienza luminosa:	228LM/W@60mA
Colore:	Bianco
Angolo di visualizzazione (°):	120°
Garanzia:	3-years

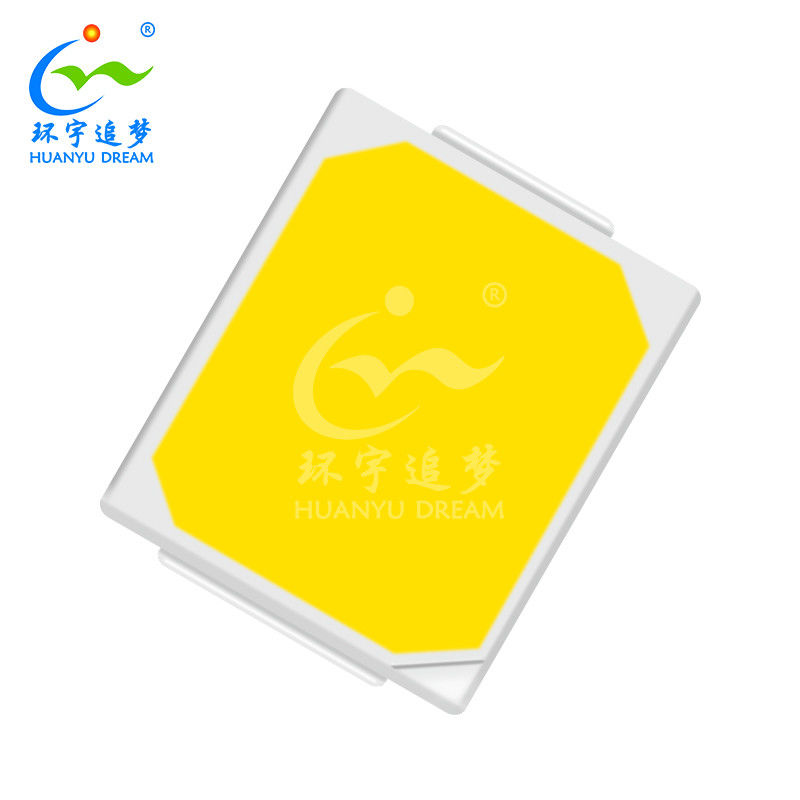

120 Degree High Light Efficiency White 60mA SMD 2835 LED CHIP

This high-performance LED chip utilizes a standard 2835 surface mount package, delivering exceptional brightness and energy-efficient luminous performance at operating currents up to 60mA. The unique 120-degree wide-angle emission design ensures uniform, soft diffused lighting, making it ideal for indoor lighting applications requiring extensive area illumination such as LED tubes and panel lights.

Product Specifications

Package	HY-2835W60-3V2S
Power	1W
Voltage	2.7-2.9V
Current	300mA
Light Efficiency	228LM/W@60mA
Color	White
Viewing Angle	120°
Warranty	3-years

Key Features

High current output: 60mA drive capability for superior brightness
Exceptional efficiency: Outstanding luminous efficacy for energy savings
Wide-angle illumination: 120-degree uniform light distribution eliminates dark areas
Universal packaging: Standard 2835 surface mount design for easy manufacturing integration
Application-specific: Optimized for uniform lighting in tubes, panel lights, and similar fixtures

Dimensions

Units: mm; mark indicates cathode

Applications

Indoor basic lighting: Core light source for LED fluorescent tubes, flat panel lights, and ceiling fixtures providing uniform overall illumination
Commercial display lighting: Ideal for light strips, light bars, and flexible lighting systems creating ambiance or supplementary wall washing for shop windows and shelving
Office and public spaces: Widely used in office grille lights, classroom lighting, supermarket fresh food illumination, and other applications requiring high light uniformity
Furniture integrated lighting: Embedded solutions for cabinet lights and wardrobe lighting delivering functional illumination with soft, comprehensive coverage
