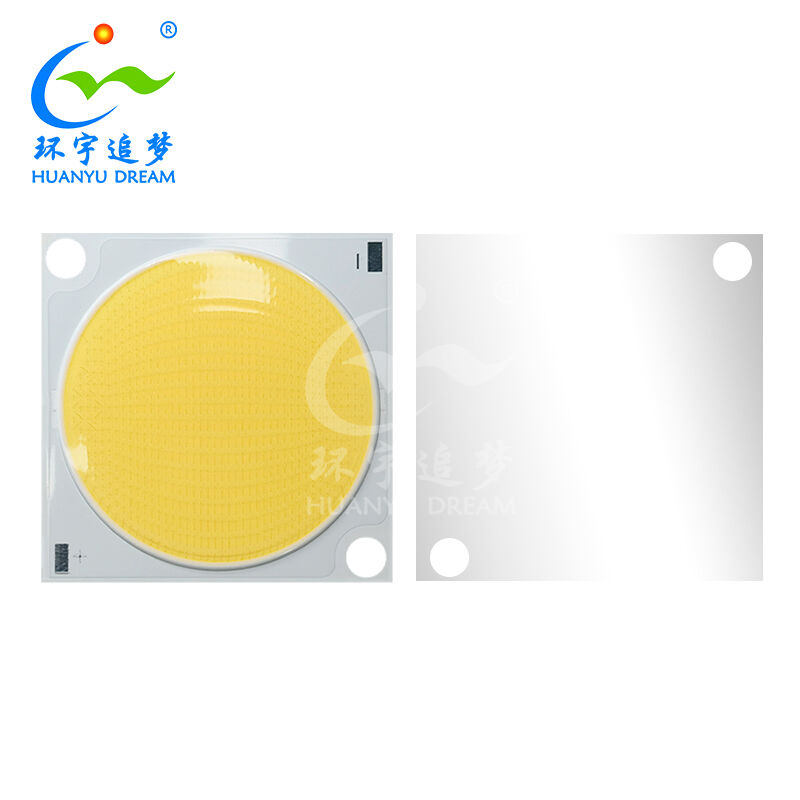

3838 High Power COB LED 200W 54V-57V 2700-6500K 80Ra RoHS Compliant

Name: 3838 High Power COB LED 200W 54V-57V 2700-6500K 80Ra RoHS Compliant
Brand: Shenzhen Huanyu Dream Technology Co., Ltd
SKU: JC-3835W57-18C23B-200-D5
Price: 16.50 USD
Availability: InStock

Dettagli del prodotto

Luogo di origine: Cina

Marca: HuanYu Dream

Certificazione: RoHS

Numero di modello: JC-3835W57-18C23B-200-D5

Termini di pagamento e di spedizione

Quantità di ordine minimo: 1 pezzo

Prezzo: Negotiated

Imballaggi particolari: 9 pc/vassoio

Tempi di consegna: 10-15 giorni lavorativi

Termini di pagamento: T/T, Paypal, Ali Pay

Capacità di alimentazione: 30000 unità al giorno

Ottieni il miglior prezzo

Dettagli del prodotto

Descrizione del prodotto

Evidenziare:
                                                                                                                                                                                                                                                                                                                High Power COB LED 200W, Photography LED with warranty, COB LED 2700-6500K 80Ra


Nome del prodotto:	la PANNOCCHIA 3838 ha condotto i chip	Dimensione:	38.0mm×38.0mm×2.4mm
Ampio angolo di visione:	120°	Cri:	80
TDC:	2900K-7000K	Orario di lavoro:	50000 ore
Energia:	200 W	Serie:	18S23P

Nome del prodotto:	la PANNOCCHIA 3838 ha condotto i chip
Dimensione:	38.0mm×38.0mm×2.4mm
Ampio angolo di visione:	120°
Cri:	80
TDC:	2900K-7000K
Orario di lavoro:	50000 ore
Energia:	200 W
Serie:	18S23P

3838 High Power COB LED 200W 54V-57V 2700-6500K 80Ra RoHS Compliant

High-performance 200W COB LED chip delivering exceptional luminous output with wide color temperature range and RoHS compliance for industrial and commercial lighting applications.

Product Features

Dimensions: 38.0 mm × 38.0 mm × 2.4 mm
High Color Rendering Index: 80 CRI
Wide 120° viewing angle
RoHS compliant for environmental safety
Sulphation corrosion resistance
Manual soldering compatible
White LED fabricated using blue chip and phosphor technology

Package Dimensions

Electrical & Optical Characteristics (Ta=25℃)

Type	Symbol	Test Condition	Min	Typ	Max	Unit
Forward Voltage	VF	IF=3600mA	52	-	58	V
2550K-3100K Luminous Flux	φ	IF=3600mA	21000	--	24000	Lm
3100K-4050K Luminous Flux	φ	IF=3600mA	22000	--	26000	Lm
4050K-7000K Luminous Flux	φ	IF=3600mA	22000	--	26000	Lm
Viewing Angle	2θ1/2	IF=3600mA		120		Deg
Color Rendering Index	CRI	IF=3600mA	--	80	--	--
Thermal Resistance	Rth(j-s)	IF=3600mA	--	--	0.67	℃/W

Absolute Maximum Ratings (Ta=25℃)

Parameter	Symbol	Rating	Units
Power Dissipation	Pd	240	W
Forward Current	IF	3600	mA
Peak Forward Current	IFP	4200	mA
Junction Temperature	Tj	115	℃
Solder Temperature	Ts	350	℃
Operating Temperature	Topr	-40 ~ +85	℃
Storage Temperature	Tstg	-40 ~ +100	℃

Optical Characteristic Curve

Applications

Indoor and outdoor lighting systems
Spot light fixtures
Down light installations
General purpose lighting applications

Frequently Asked Questions

Q1: Do you supply OEM, ODM service?

Yes, we absolutely provide OEM and ODM services to meet your specific requirements.

Q2: How can I get a quotation from you?

Please provide us with your product requirements and quantity details. Our professional team will respond promptly, typically within a few hours.

Q3: Is there any discount for bulk order?

Yes, we offer wholesale pricing for bulk orders and can accommodate customized product requests.

Q4: Do you support drop shipping and how much is the shipping cost?

Yes, we support drop shipping. Please provide the receiver's information when placing your order. Shipping costs are calculated based on your order's volume and weight.

Q5: How to place an order?

You can place an order by sending us an inquiry email or contacting us online. We will respond to your request as soon as possible.

Q6: What about the lead time?

Lead time depends on order quantity. Typically, production takes 5-7 working days. Sample orders can be delivered as quickly as the same day.
